Our units have varying requirements for how much “Clear Space” they need to fit your weapon. Clear Space is the distance between the trigger guard and the mounting slot on your firearm. If you’re not familiar with Clear Space or are unaware of how to measure your weapon, please see the video below.

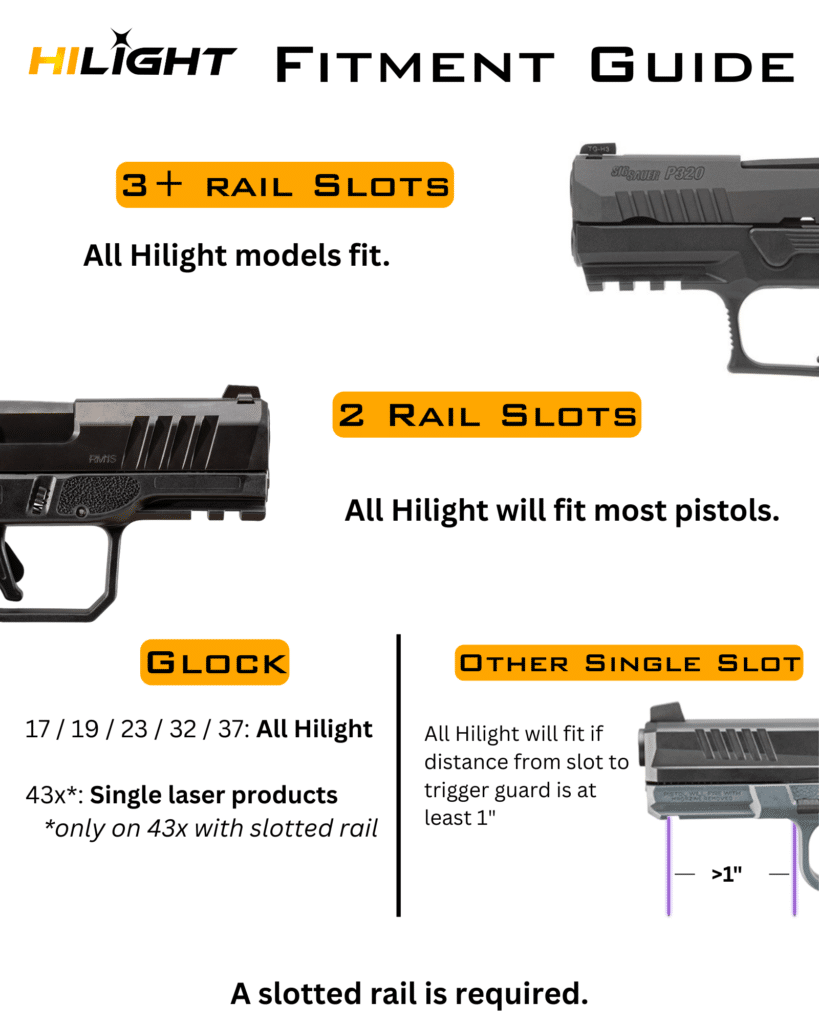

Quick rule of thumb: if your gun has at least 2 slots on the mounting rail, nearly all Hilight units will fit though some will extend past the barrel. If it has 3 slots, all Hilight units will fit. The only exception would be in the case of certain curved trigger guards. Returns are always FREE with Hilight so please do not hesitate even if you think it might not fit.
If you already know your weapons Clear Space, please refer to the guide below the video.
23mm of Clear Space Required
This includes:
P3B, P3P, P3G, P3R.
19mm of Clear Space Required
This includes:
SS10B, SS10B TAN, PIRG.
28mm of Clear Space Required
This includes:
P3PBL, P3BGL, P3PGL, P3RGL, P3BGL TAN, H10GLIRL.
27mm of Clear Space Required
This includes:
P3PB, P3RG, P3BG, P3PG, PIRGRN.
23mm of Clear Space Required
This includes:
PS5P, PS5B, PS5G, PS5B (TAN).
24mm of Clear Space Required
This includes:
ES10B & ES10G.
23mm of Clear Space Required
This includes:
MV3BL & P3GL.
24mm of Clear Space Required
This includes:
PF10B & PF10G.
27mm of Clear Space Required
This includes:
P5GL & P5RL.
Each model has varying levels of Required Clear Space
This includes:
PIRGL (26MM),
P10GL (30MM),
H10XL (31MM),
P20GL (35MM),
P3XL (23MM).
Each model has varying levels of Required Clear Space
This includes:
PIRL (26MM),
P5S (28MM),
P10S (43MM),
P3X (26MM),
